MÁY ĐO ÁNH SÁNG - BỨC XẠ MẶT TRỜI
-
Điện thoại tư vấn và đặt hàng
-
tuanblue739@gmail.com - kinhdoanh@thietbituanphat.com

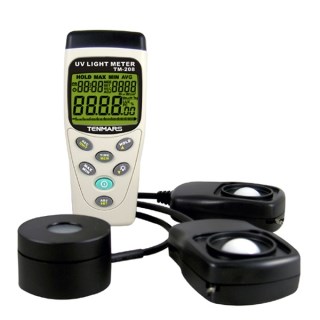

Tenmars TM-208 là thiết bị đo 3 trong 1
Đo tia UV : 40.0uW, 400uW, 4,000uW, 20mW ( +/-4% )
Đo năng lượng mặt trời : 40, 400, 2000 W/m2, 13,127,634 Btu/ft2.h / +/-10W/m2 (+/-3 Btu/ft2.h) or +/- 5%
Đo ánh sáng : 40,400,4,000,40,000,400,000Lux, 40,400,4,000,40,000Foot-candel +/-3%
Measuring range | UVA measurement | Illumination measurement | Solar measurement |
40.0uW, 400uW, 4,000uW,20mW | 40,400,4,000,40,000,400,000Lux 40,400,4,000,40,000Foot-candel | 40, 400, 2000 W/m2 13,127,634 Btu/ft2.h | |
Resolution | 0.01uW,0.1uW, 1uW,0.01mW | 0.01,0.1,1,10,100 Lux 0.01,0.1,1,10 Foot-candel | 0.01, 0.1, 1 W/m2 0.01, 0.1, 1 Btu/ft2.h |
Accuracy | +/-4% | +/-3% (Calibrated to standard incandescent lamp 2856º K)
+/-6%(other visible light source ) | +/-10W/m2 or +/- 5% |
Wavelength | 320~400nm | 400~1100nm | 400~1100nm |
USB datalogger | 45,000 records | ||
Sample Time | 4 tims per second. | ||
Data Output | USB PC serial interface. | ||
Power Supply | 9V battery(NEDA 1604 IEC 6F 22 JIS 006P) | ||
Battery life | approx. 100 hr. | ||
Total Weight | approx. 1,200g | ||
Accessories | Instruction manual. | ||
9V battery(NEDA 1604 IEC 6F 22 JIS 006P) | |||
Carrying case | |||
UVA sensor probe. | Illumination sensor probe. | SOLAR sensor probe. | |
Sensor probe | Ø49 x 28(H) mm. | 80(L) X 55(W)X25(H)mm. | 80(L) X 55(W)X25(H)mm |
Main instrument | 130(L) x 55(W) x 38 (H)mm |
